Details

---

The PMT ALPHA EDU is a high-precision portable 3D measuring arm designed for educational and entry-level industrial applications. Featuring a lightweight carbon-fiber structure, built-in dual batteries, and advanced contact and non-contact measurement capabilities, it offers accurate, user-friendly, and cost-effective 3D inspection and scanning. Ideal for training centers, technical institutions, and basic industrial QC, the ALPHA EDU delivers professional-grade performance with classroom-ready simplicity.


---

Key Features:


• Lightweight Carbon-Fiber Construction

Built with aerospace-grade carbon fiber for maximum strength and minimum weight, ensuring long-term durability and ergonomic ease during operation.

• High Measurement Accuracy

Delivers exceptional contact and non-contact measurement accuracy up to ±15μm (2σ), fully compliant with ISO 10360-12 and ISO 10360-8 standards.

• Advanced 3D Laser Scanning

Integrated high-resolution laser line probe with a scan rate of 1.2 million points per second and up to 4,000 points per line, offering superior point cloud density and precision.

• Built-In Dual Batteries for Portability

Dual high-performance internal batteries provide over 10 hours of continuous operation, ensuring uninterrupted performance during on-site or remote inspections.

• Intelligent Wireless Connectivity

Equipped with high-speed Wi-Fi and USB transmission options for flexible and fast data transfer to your inspection software or CAD system.

• Multiple Arm Length Options

Available in working volumes ranging from 1.5m to 4.5m, with both 6-axis and 7-axis configurations to suit different inspection environments and application needs.

• Temperature-Resistant Design

Operates efficiently between 5°C to 45°C, tested under IEC 60068-2 standards for extreme temperature and vibration conditions.

• User-Centric Design

Features a counterbalanced structure, ergonomic wrist joints, and smooth movement that reduces user fatigue and improves handling efficiency.



---

 Core Functions:



• Contact Measurement

High-precision tactile probing for dimensional inspection, alignment, and feature verification.

• Non-Contact Laser Scanning

Captures complex surfaces and freeform geometry with fast, high-resolution 3D scanning for reverse engineering, inspection, or quality control.

• Real-Time 3D Visualization

Integrates with major metrology software platforms (e.g., PolyWorks, Geomagic, Verisurf) for real-time data capture, analysis, and reporting.

• Flexible Deployment

Easily mountable on tripods, tables, or magnetic bases to suit in-lab or on-site measurement needs.


---

Key Benefits:



•  Accurate & Repeatable

Verified against international metrology standards for reliable and repeatable results, even in high-demand industrial environments.

• Time-Saving & Efficient

Quick setup and seamless software integration speed up inspection cycles, reduce downtime, and streamline workflows.

• Fully Portable for On-Site Use

Compact, lightweight, and battery-powered design allows full operation anywhere on the shop floor or in the field.

• Low Maintenance, High Durability

Built with minimal moving parts, robust housing, and industrial-grade components—designed for long-term accuracy and minimal service downtime.


• Adaptable for Multiple Industries

Ideal for applications in aerospace, automotive, mold making, reverse engineering, precision machining, and manufacturing QA.


---

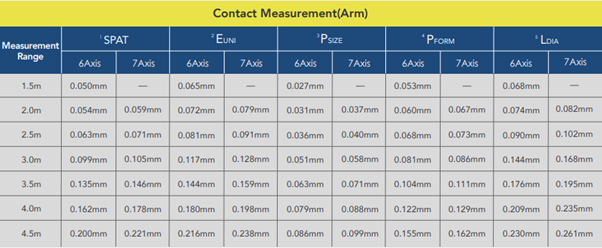

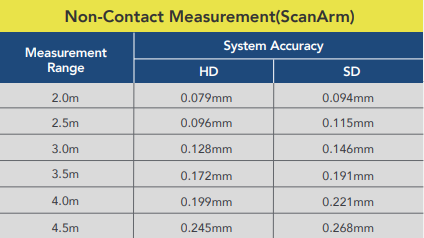

SPECIFICATIONS:



---

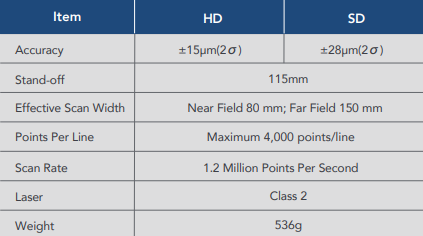

LASER LINE PROBE SPECIFICATION
